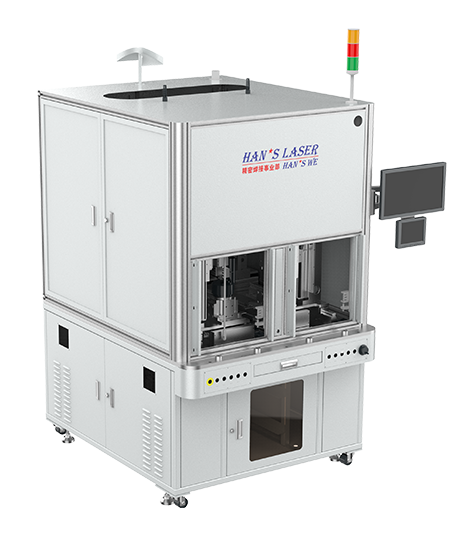

The system is used for welding of small motors and can meet three welding procedures, including 4 uniform welding spots around the top of a motor, 3 even welding spots around the bottom, and circumferential welding at the middle connection. The system can automatically identify the welding process and complete the welding automatically, which greatly saves time and cost.
System Composition
It is composed of a laser, a chiller, a small motor welding table, etc. The laser host can split up to 4 channels of optical fibers, and the splitting methods are 2 channels of time splitting and 2 channels of energy splitting. The system can meet three processes welding. Each fixture corresponds to a process, and any fixture can be quickly replaced at random. The system can automatically identify the process and complete welding.
System Features
1. Convenient and fast loading and unloading; he system automatically recognizes the process and completes the welding;
2. Automatically locate and clamp the fixture, identify whether the fixture is installed in place and whether there are parts loaded
3. The fixture can be quickly replaced at will, without the need to fasten screws, and can achieve 3 welding procedures;
4. Equipped with automatic safety doors and protective gratings to prevent laser radiation and ensure personnel safety;
5. The welding head is on an X, Y, Z axis fine-tuning platform, which can adjust the focus position of the welding head;
6. With external touch screen, users can change the welding speed and blowing protection time.
